(CUSTOMIZABLE 4 – 12 Tanks & 40 – 100 Ampere) Barrel Production Line For Etching, Cleaning, Plating

Many other different sizes and  types of our tanks, heaters and rectifiers are available on request.

£Price: Please contact us us to discuss your design and get a quote.

Model NO 4-12T/40-100A
Origin United Kingdom
Application Surface Treatment
Auxiliary Equipment 40-100 Ampere Rectifier, Heating element & filtering system on request
Types of works Etching, Electro-cleaning, Electroplating
Plating style Barrel plating
Electroplating Zinc/Copper /Nickel/Tin/Chrome/Sliver/gold, etc.
Warranty 1 year
Packaging Details solid wooden boxes/pallets

This production line can be fully customized to meet all your technical requirements. It works perfect for plating high volume of parts of various shapes and sizes at a time. Moreover our innovative design and use of high-quality materials result in longer lasting, electroplating barrels with highest quality performance!

Please contact us to receive information regarding delivery time, delivery cost and the installation services charge.

Category:

Description

ABOUT OUR PLASTIC DRUM BARREL PRODUCTION LINE FOR ETCHING CLEANING PLATING

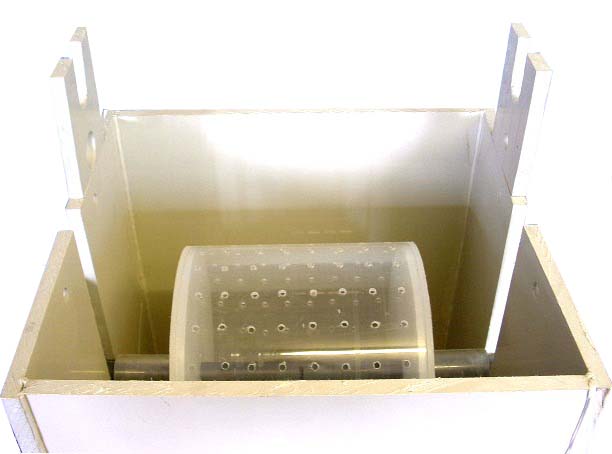

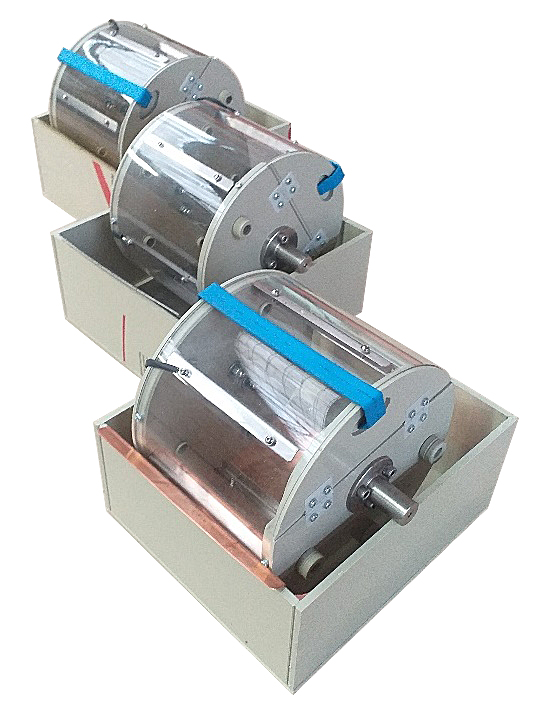

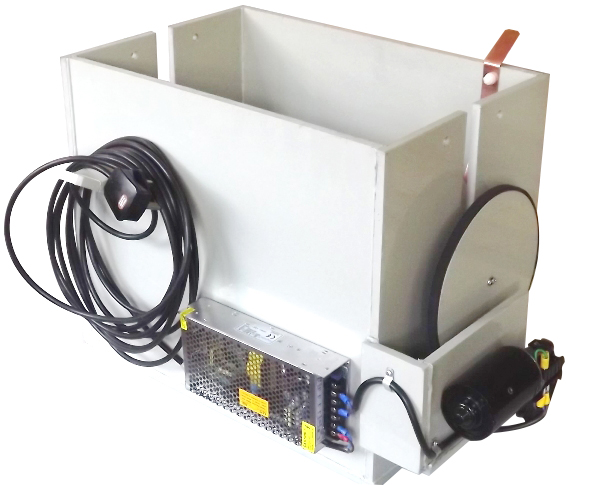

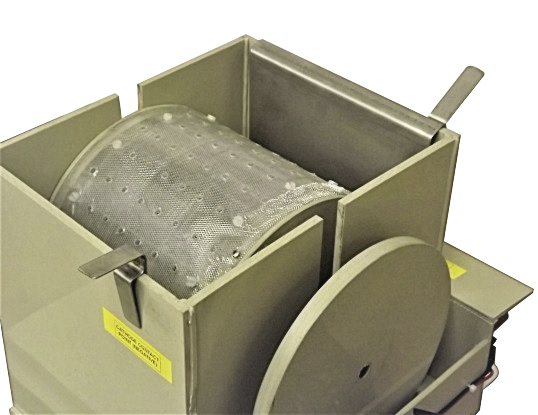

This customizable drum barrel production line is a relatively low cost, high volume solution for a variety of electroplating applications, it provides a fast, efficient way to ensure parts receive an even, effective plated surface.  Barrel plating entails placing the parts inside a barrel constructed of required plastic material. The barrel contains center axis that conduct the electrical current. The barrel rotates while immersed in the electrolytic plating solution. The cathode conductive device in the drum passes through the central shaft holes on both sides of the drum through copper wires or rods, and then is respectively fixed on the conductive feet of the left and right wall panels of the drum. The parts are naturally connected with the cathode conductive device by their own gravity in the drum, this causes the parts to tumble or “cascade”.

This method is a relatively low cost, high volume solution for a variety of electroplating applications. It provides a fast, efficient way to ensure parts receive an even, effective plated surface.  We manufacture a large range of custom designed Immersion Barrel Plating Lines. Fabricated barrel lines are used for general metal finishing applications and electronic component plating. During barrel electroplating many factors such as the structure, size, rotating speed, conductive mode and hole opening rate of the drum are essential for the production efficiency and the plating quality.

QUALITY ASSURANCE

Buying a professional plastic drum barrel production line  is essential for getting the job done properly! Which is why businesses that plate products with metal always choose us. As the manufacture we sell our advanced effective, cost-efficient production lines for the best price than they would find locally. For a number of years, Technical Supermarket has been involved in the production and assembly of complete lines. Because of skilled workmanship our electroplating lines designed  for electroplating conductive materials are long-lasting, even under the conditions of most popular electro-chemical processes.

WHY YOU MAY WANT TO BUY OUR PRODUCT

Buying directly from the manufacture you have the guaranty of the best price. Our customers are also provided with full range of after-sale service for the equipment and accessories bought from us including delivery, installation by our engineers, warranty, maintenance, parts, materials.

WE DELIVER ALL OUR PRODUCTS WORLDWIDE 24/7

We deliver all our products all over the world (and have been since 2004) and therefore we have vast experience in professional packaging, to keep a high level of customer satisfaction we insure that every product is packed to a professional standard. Furthermore in the highly unlikely event, of parcel being damaged in transit we offer a replacement at no extra cost!

If you need our help and unsure of the barrel electroplating production line you need for your business, our technical experts will happily provide free technical advice to help you find the perfect fit.

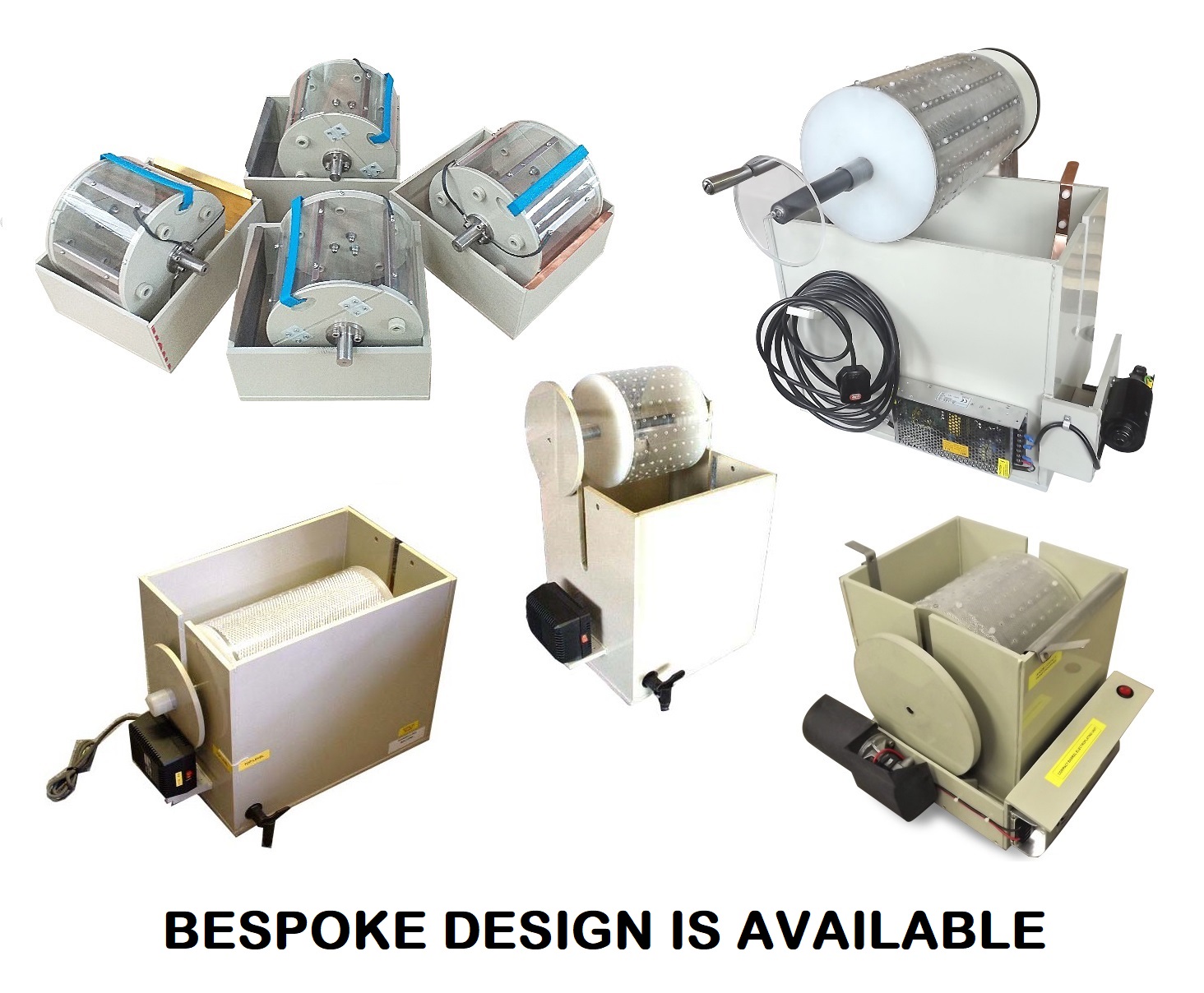

CUSTOM & BESPOKE DESIGN

Please feel free to contact us if you require custom type/size of PP-welded tanks. Such as tanks with stands, lids, supports, mechanical or air agitation, ventilation, heating, cooling and filtering systems. Chemicals, anodes, baskets and cable sets are also available on request. Technical Supermarket produces high quality equipment for every aspect of heating, electroplating, polishing, etching, etc. All our products are perfect use for both personal and industrial purposes, as well as for education. Visit our main website to find out more information.
