anodes

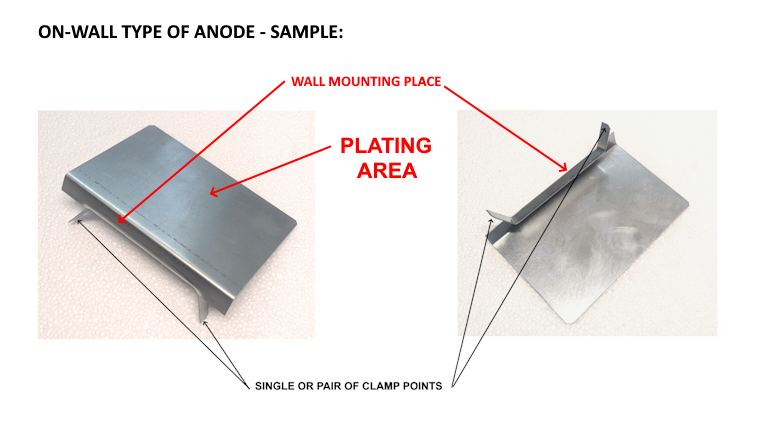

Standard Anodes for 0.6L-1.0L Tanks (EPS-10A and EPS-30A Station) – On-Wall Position Plate/Sheet

£7.78 – £34.61 inc. VAT

THERE ARE MANY ANODE SHEETS (PLATES) FOR COMMON MOST POPULAR PLATING PROCESES.

ESTIMATED ANODE DIMENSIONS ARE: 120 MM x 60 MM.

CONNECTION TYPE – CROCODILE CLAMP.

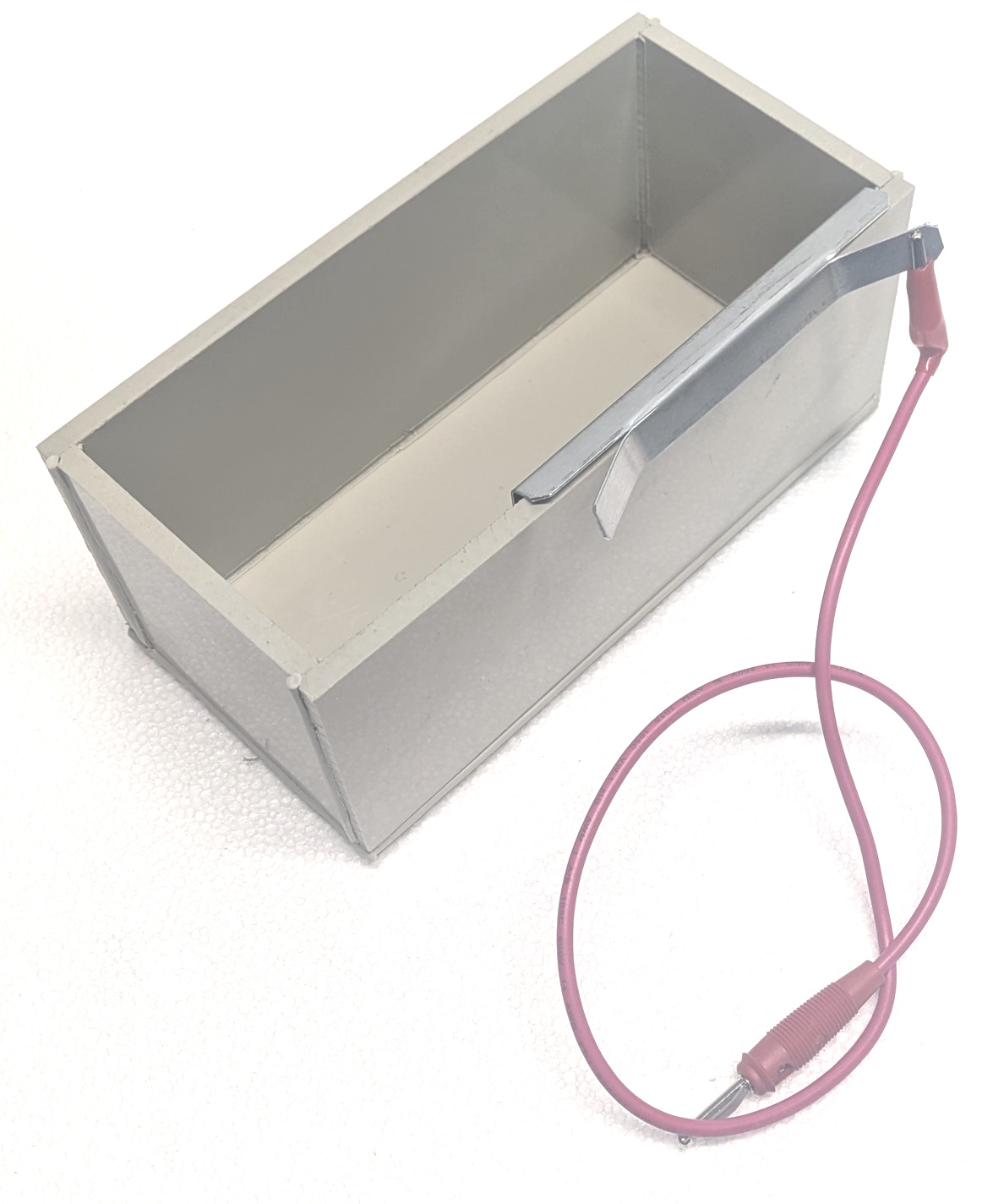

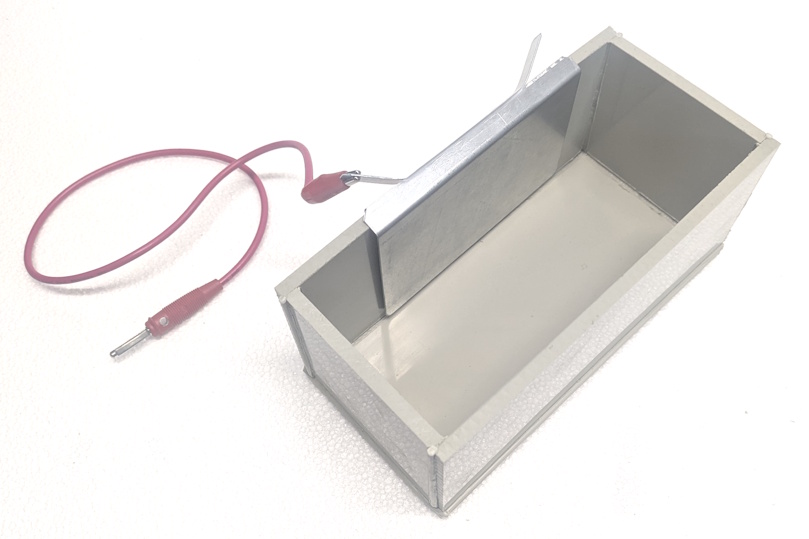

USE TWO ANODES FROM BOTH SIDES OF TANK TO PLATE LARGER OR MANY OBJECTS AT A TIME.

OTHER TYPE,  SIZE, MATERIAL OF ANODES ARE AVAILABLE ON REQUEST.

SKU: AN-EPS-30 Category:

Description

How to choose an anode for your work:

It depends on the material, size and the shape of the item that needs to be plated. The anode is the positive (‘+’) electrode, which is placed in the tank opposite the object that you are going to plate (cathode) which is a negative (‘-‘) electrode. Anodes should perfectly suit the item being plated so they must be chosen accordingly.

The most popular types of anodes for most popular processes are:

1. Copper anode for the Copper plating process.

2. Gold or 312+ stainless steel anode for the Gold plating process.

3. Silver or 312+ stainless steel anode for the Silver plating process.

4. Nickel anode for the Nickel plating process.

5. Brass anode for Brass plating process.

6. Platinised Titanium Rhodium plated anode for the Rhodium plating process.

7. Peroxide Lead Anode for hard-Chrome plating process.

Additional information

Weight 0.5 kg
Dimensions 25 × 15 × 10 mm
Select anode type

Brass, Bronze, Copper, Nickel, Peroxide lead, Stainless steel 316+, Zink
